CABLE NETWORK UNIARCH(CAB-6-BE)100M CAT6

1,400EGP

Content of Data SheetProduct

model

CAB-6-AE/CAB-6-BEProduct

specification

HSYV-6

4×2×0.52Test StandardISO/IEC11801、TIA-568-C.2ConductorMaterialOFC(Oxygen free copper)AWG24Nom.O.D.(mm)0.52±0.03 mmDC resistance≤95 Ω/kmInsulationMaterialHDPEThickness0.2±0.02 mmDiameter0.93±0.05 mm

ColorBlue/White- BlueGreen/White-GreenOrange/White-OrangeBrown/White-Brown

Quantity:

SKU: 85001034 Categories: ,

Description

CABLE NETWORK UNIARCH(CAB-6-BE)100M CAT6



CABLE NETWORK UNIARCH(CAB-6-BE)100M CAT6



  • Content of Data Sheet
    Product model CAB-6-AE/CAB-6-BE

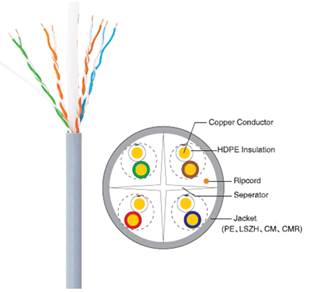

    Product specification HSYV-6 4×2×0.52 CABLE NETWORK UNIARCH(CAB-6-BE)100M CAT6
    Test Standard ISO/IEC11801、TIA-568-C.2
    Conductor Material OFC(Oxygen free copper)
    AWG 24
    Nom.O.D.(mm) 0.52±0.03 mm
    DC resistance ≤95 Ω/km
    Insulation Material HDPE
    Thickness 0.2±0.02 mm
    Diameter 0.93±0.05 mm
    Color Blue/White- Blue Green/White-Green
    Orange/White-Orange Brown/White-Brown
    Pitch Offset pitch ≤20 mm
    Cable pitch ≤120 mm
    Sheath Material PVC(complies RoHS/REACH)
    External O.D. 5.8±0.3 mm
    Color Orange
    Tensile strength >13.5 Mpa
    Thickness 0.6±0.05 mm
    Surface Printing Letter height 3.0±0.3 mm
    Color Black
    Print error
    & Space
    1±0.005 m
    Case number Yes
    Packing Packing Carton
    Once packing dimension 420mm*205mm*420mm
    Twice packing dimension 450mm*440mm*445mm
    Twice packing quantity 2 cases
    Packing length 305±1m
    Rip-cord Yes Crossing backbone Yes
    Ambient temperature -20℃~60℃
